What It Does

• Clean boost to wake up long cable runs, pedal chains, or a lazy amp input.

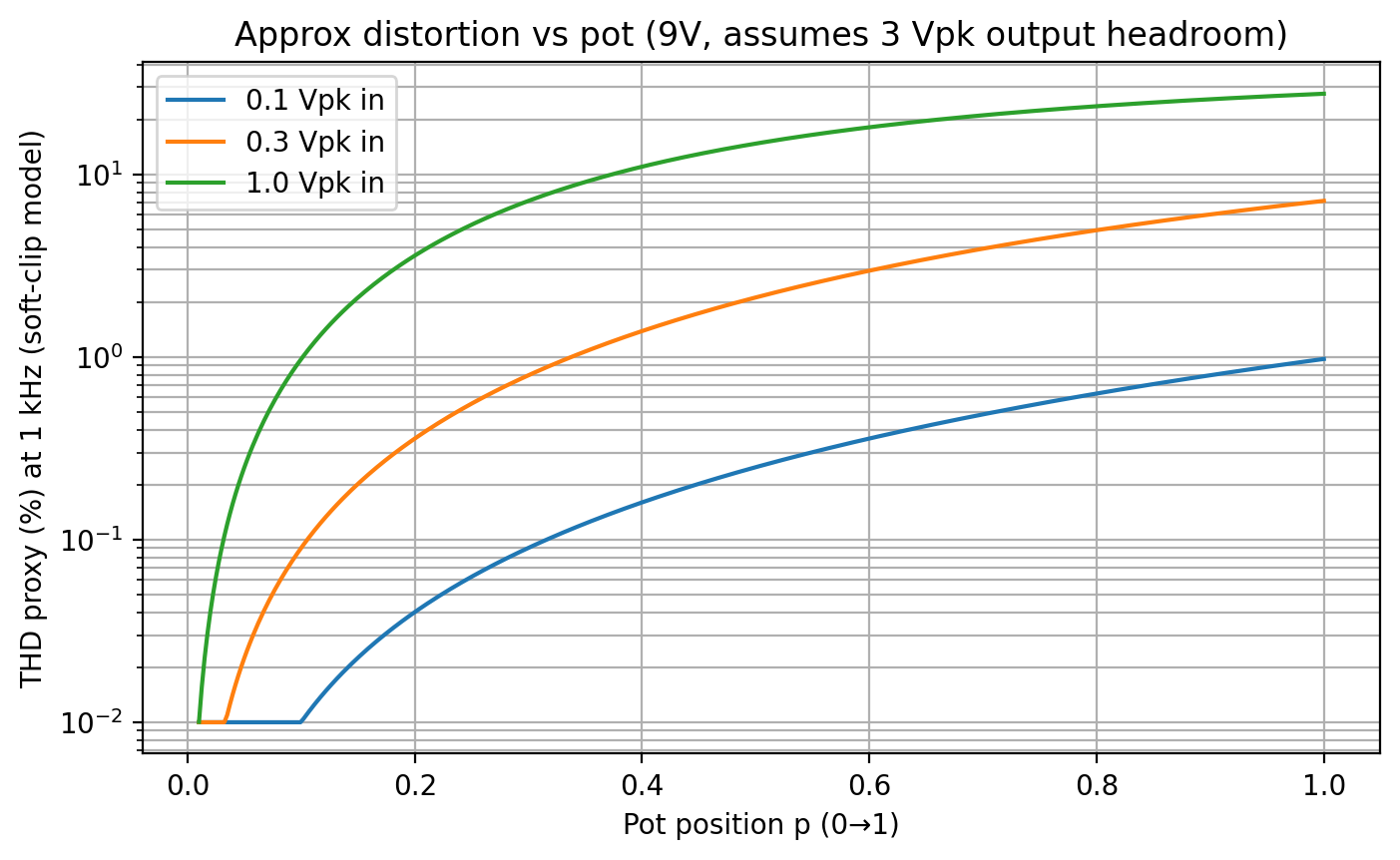

• Musical drive that can feel like “sweet grit” rather than harsh fuzz.

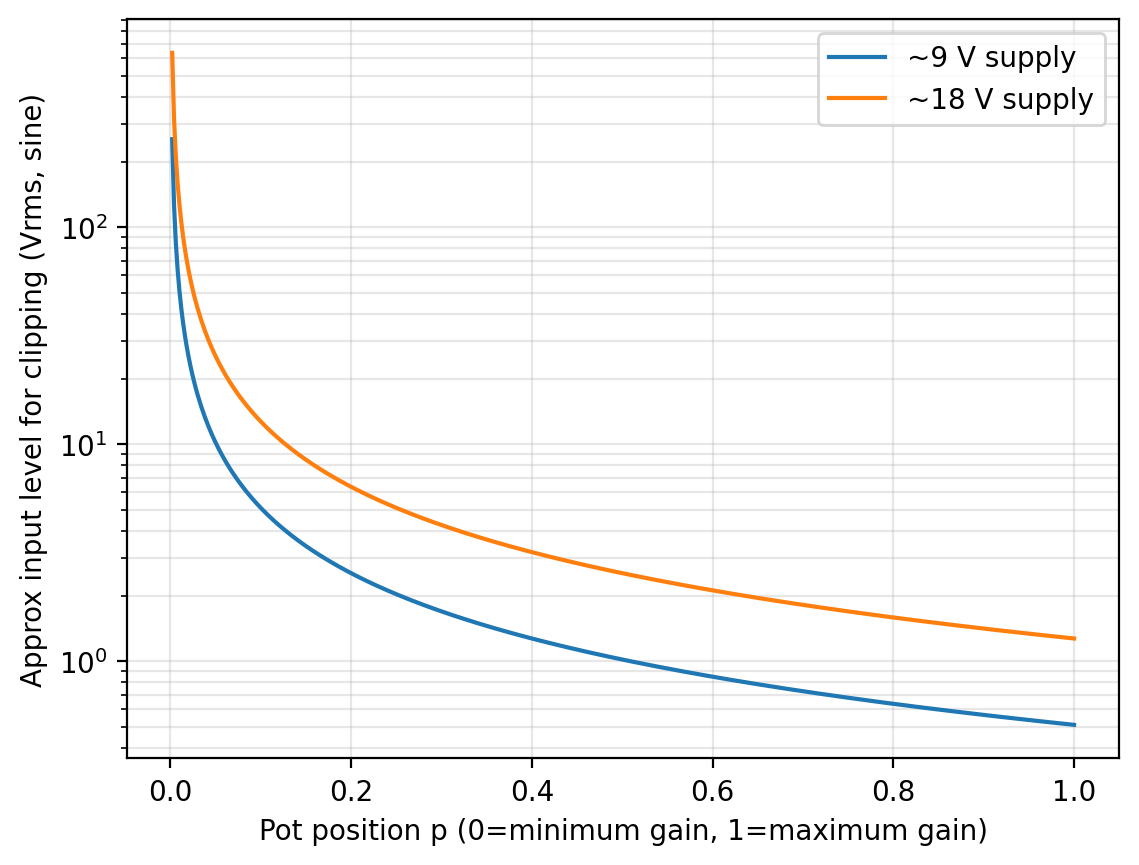

• Touch compression that responds to pick attack (great for lead lines and sustained chords).
• True bypass via DPDT switch—straight pickup-to-jack when off.

Why It Feels Different

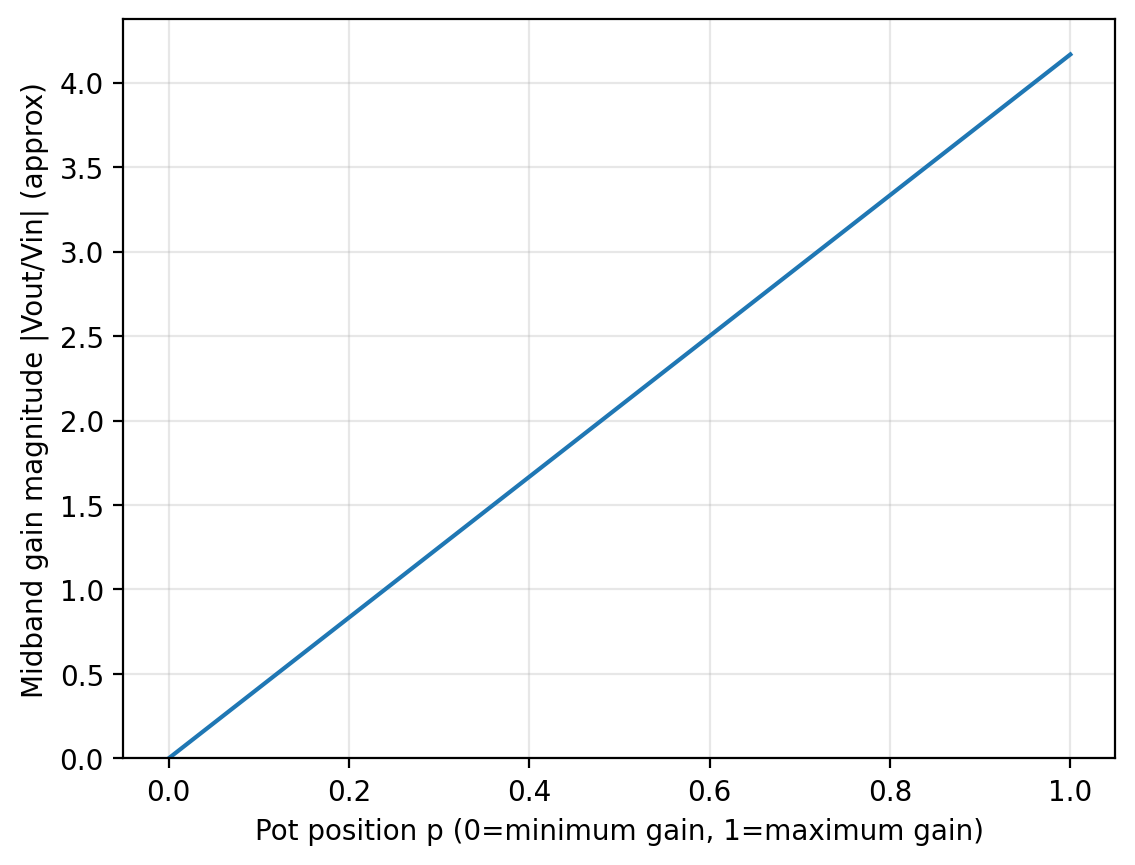

The gain control is not a typical 'volume knob.' The input is injected at the pot's wiper while the pot also participates in the feedback path. Turning it changes more than gain: it changes loop behavior, impedance at the summing node, and how the op-amp approaches its limits, often perceived as "alive" and expressive.

Best use: installed inside the guitar to drive a stage rig confidently - especially where cable length and live dynamics matter.

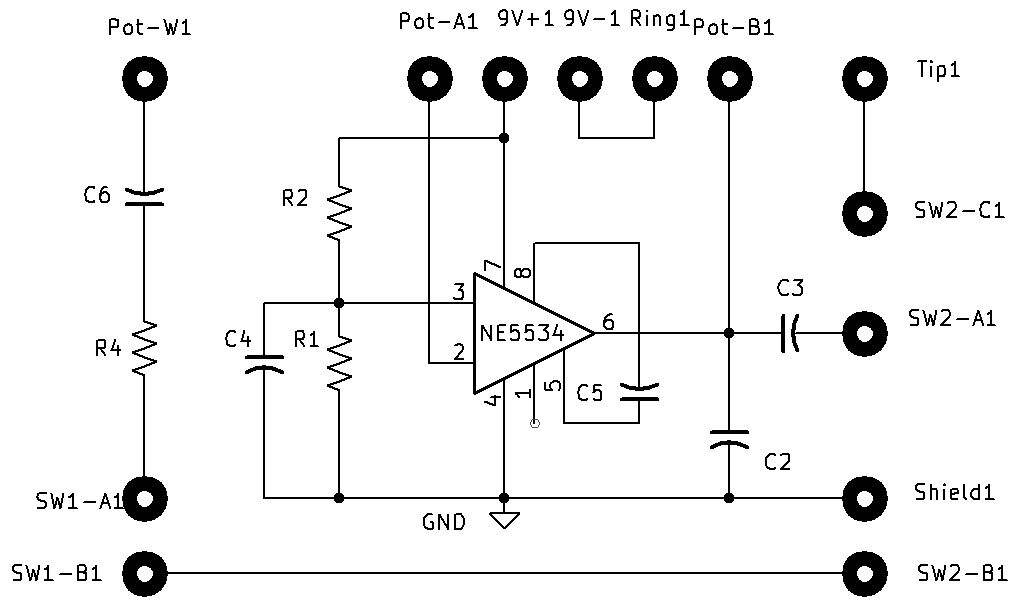

Board schematic.

How It's Wired (Plain English)

Signal Path

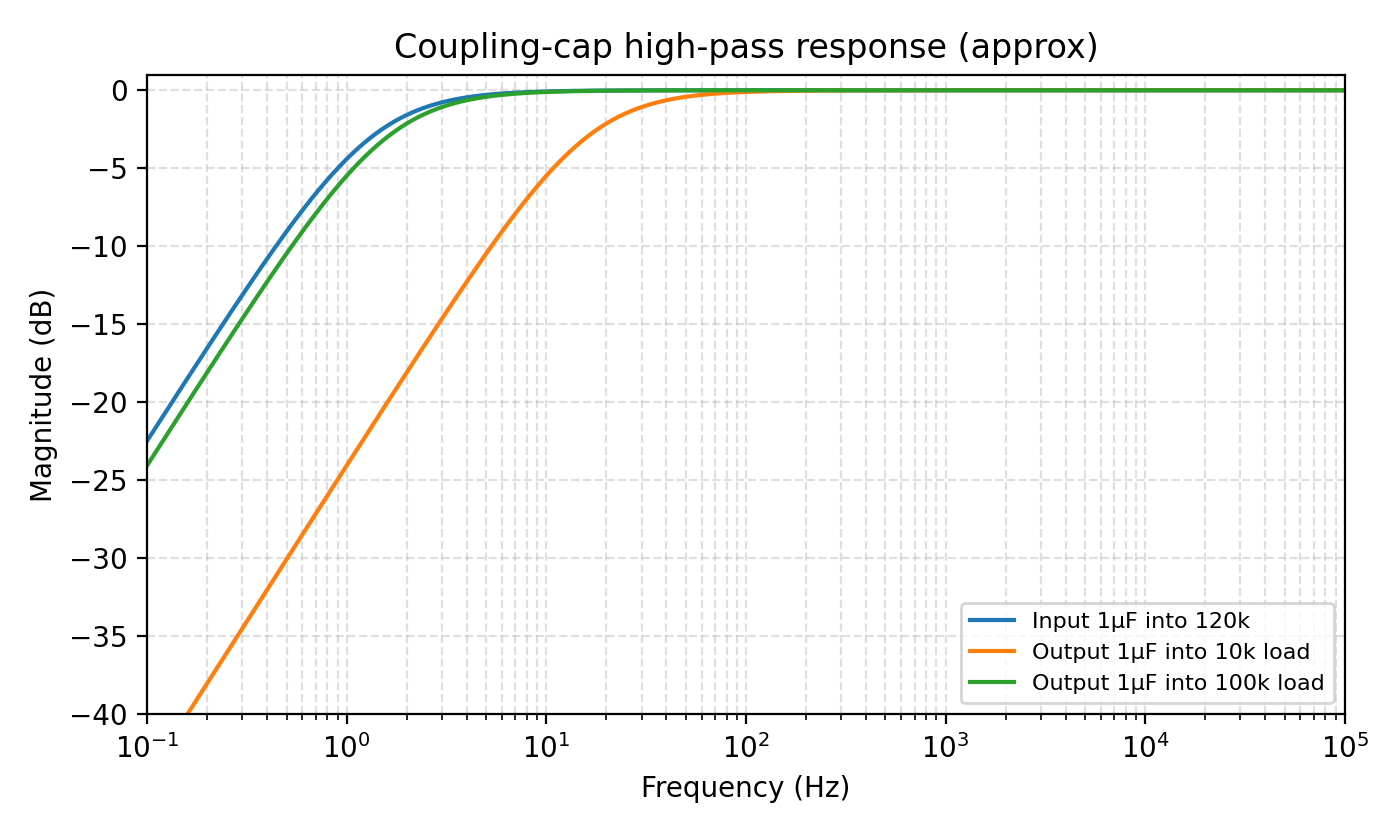

• Pickup input → series resistor (about 120kΩ) → 1µF coupling capacitor.
• That signal goes to the wiper of a 500k potentiometer.
• The pot participates in feedback between the op-amp output and the inverting input (pin 2).

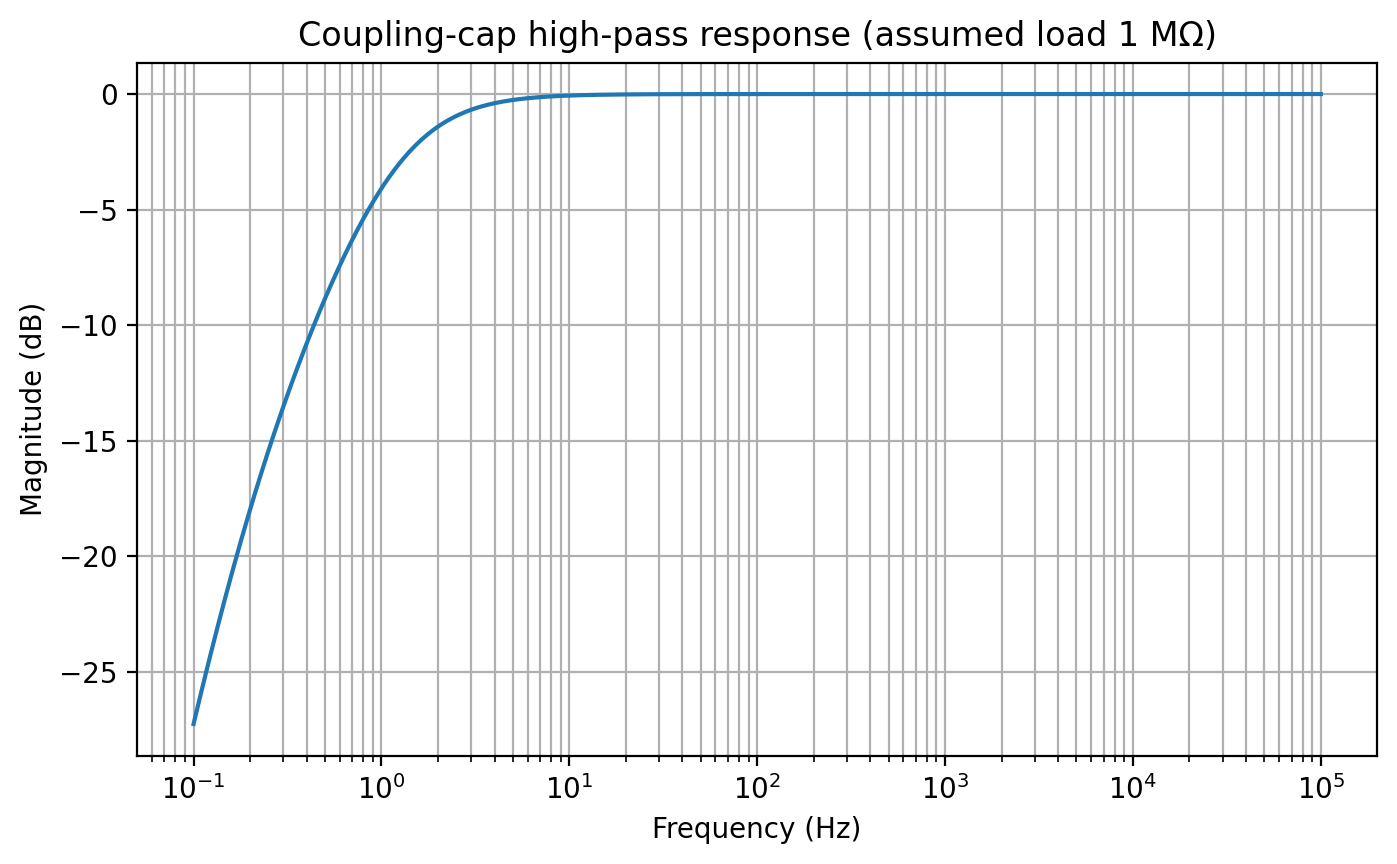

• Output is AC-coupled through a 1µF capacitor to the output jack.
• A stereo jack can disconnect the battery negative when unplugged.

Bias and 'Feel'

• Non-inverting input (pin 3) is biased at mid-supply with a 100k/100k divider.
• A 0.1µF cap decouples that bias node to ground for stability.

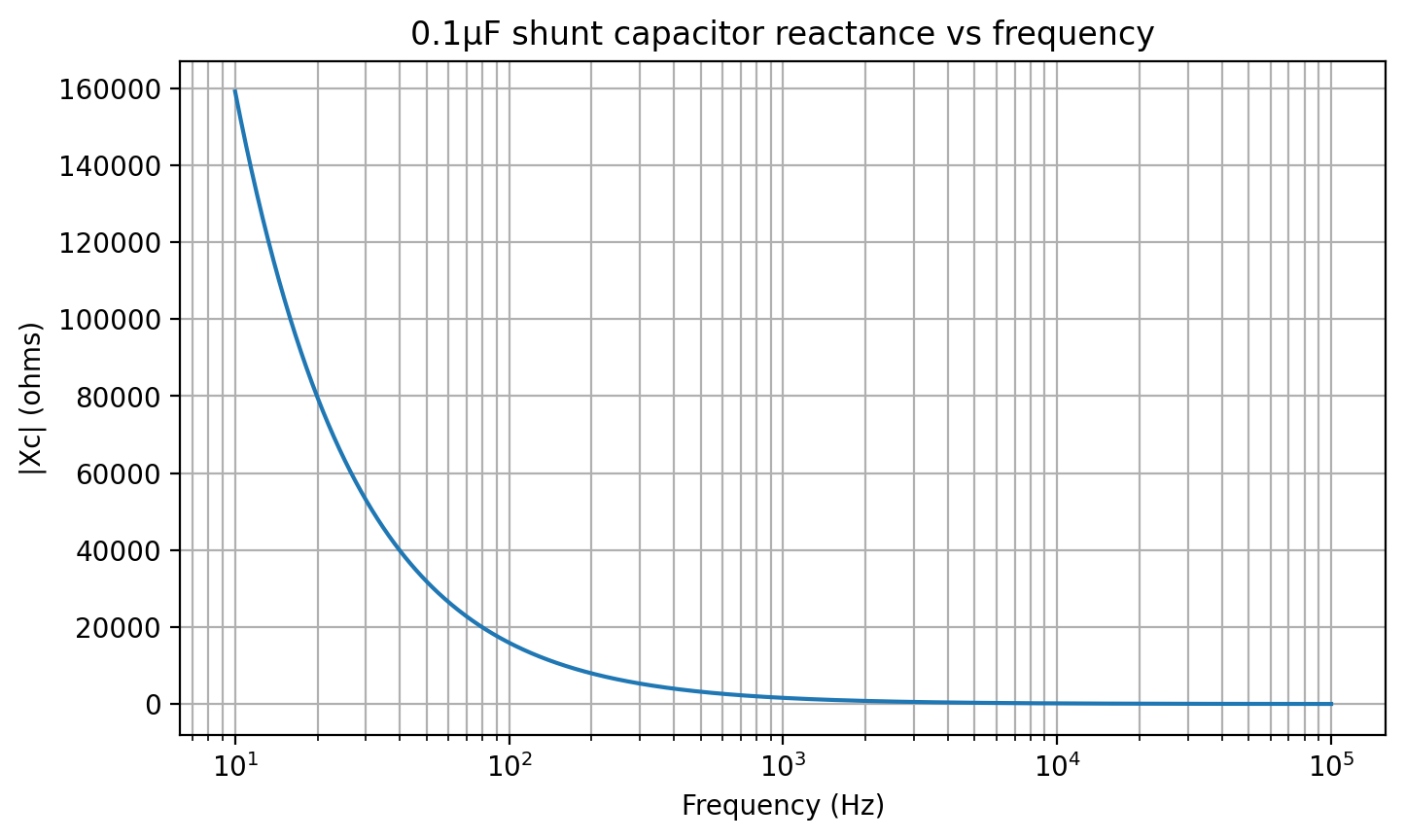

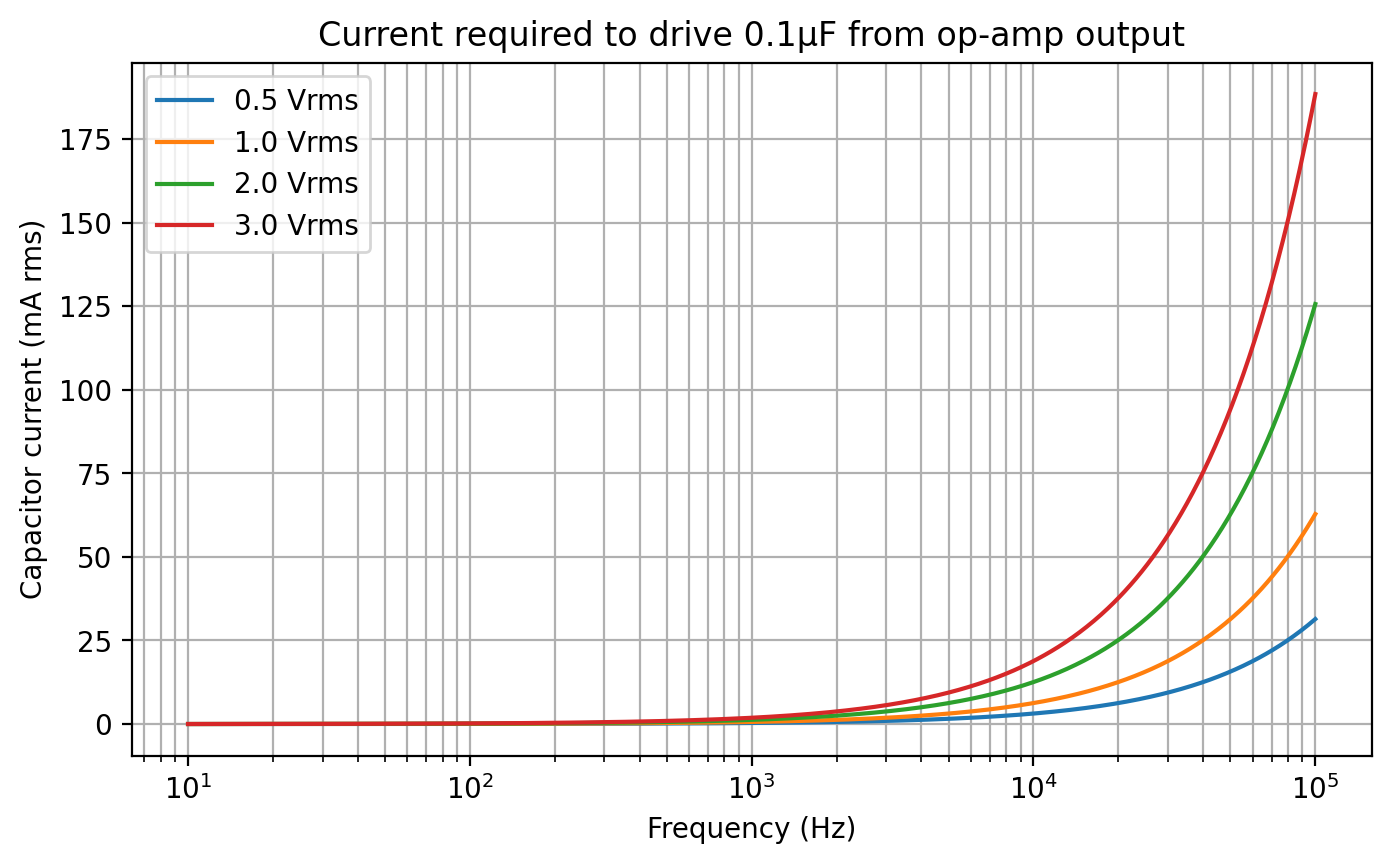

• Output includes a 0.1µF cap to ground (a strong contributor to the circuit's character).
• Optional small compensation cap at the op-amp comp pin may be present (value depends on build).

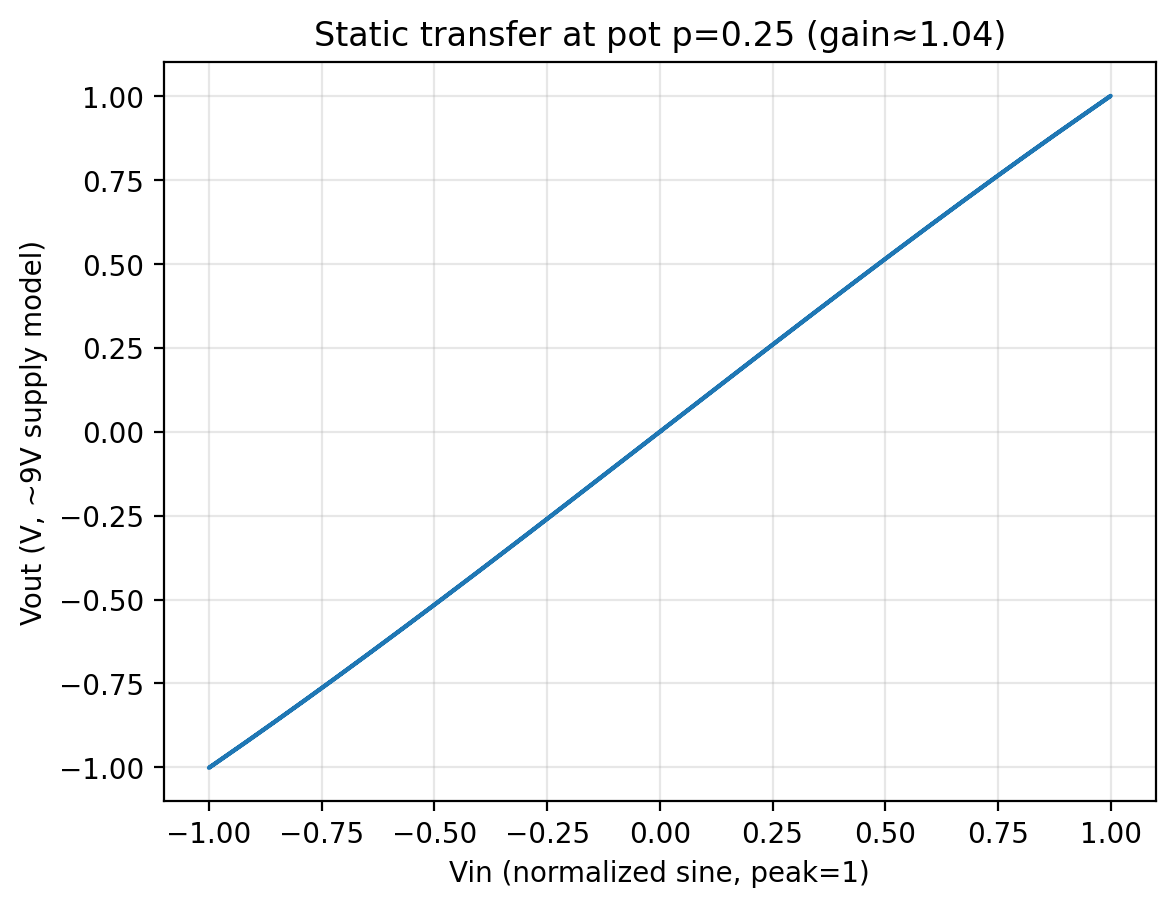

Specifications (Typical / Adjustable)

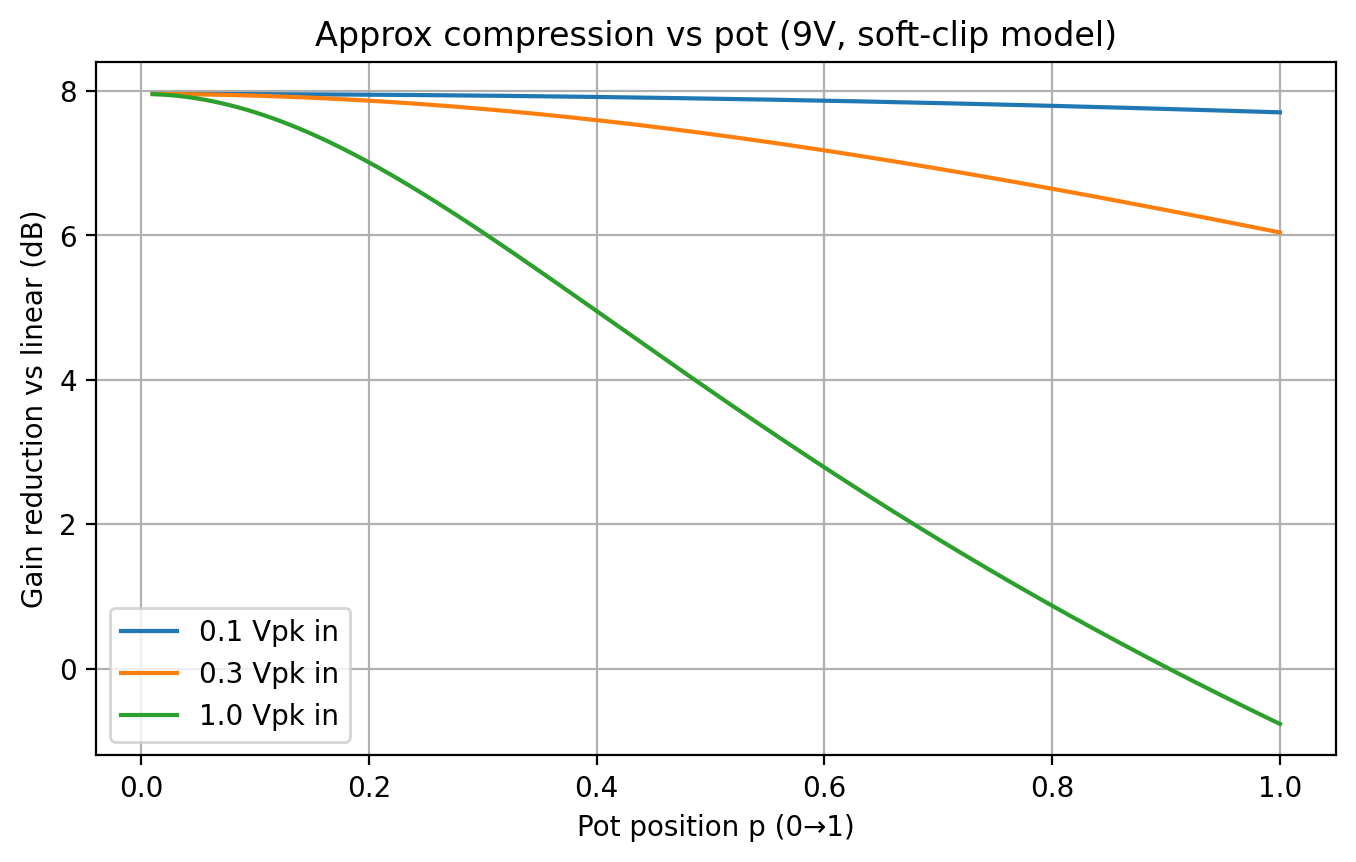

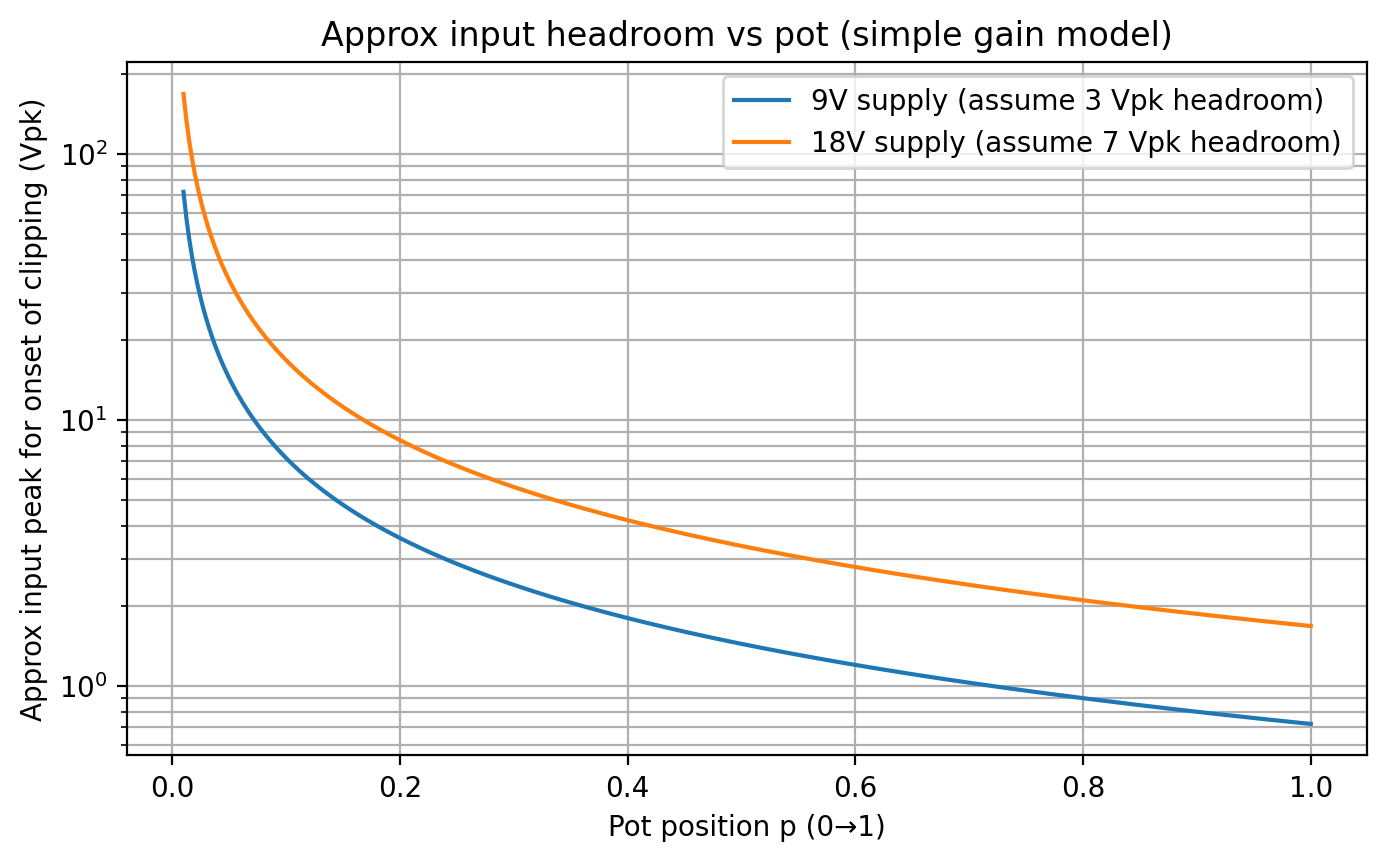

These are practical, musician-focused specs. Exact response depends on pickup, cable, amp input, and control position.

Installation Notes (Tech-Friendly)

• Keep leads short and routing tidy - this circuit can be sensitive to layout because of capacitive loading.
• Recommended: add a small series resistor on the op-amp output (e.g., 47-220Ω) if you want extra stability without losing character.
• Use a stereo output jack for battery negative switching (battery disconnect on unplug).

Testimonial

The μ-amp is unique for some of the material aspects, but mostly the 5534.

The slew rate of the 5534 was 48k which allowed full frequency headroom in the audio range. The electrolytic to ground were filters for squeal and noise.

I must admit there is perceived compression with increased volume, but no limiting roll off like real compressors.

The audio is clean replication of the original pickups, behaving with the tonal and harmonic characters of a Les Paul 1970 windings.

No distorted clipping at all when the amp was in clean mode. I've experienced only one pedal with these characteristics, but it was a clipping compressing OD with many tone controlling aspects with many choices, and that's not always good. The μ-amp is mono dimensional: hit the switch+ volume on 10! I played hundreds of hours with our preamp and it is a fond memory.

Tube amps loved the input voltage and capacitance with a 20' cable!
